Follow these steps to recalibrate your thumbsticks and triggers using the iCUE software.

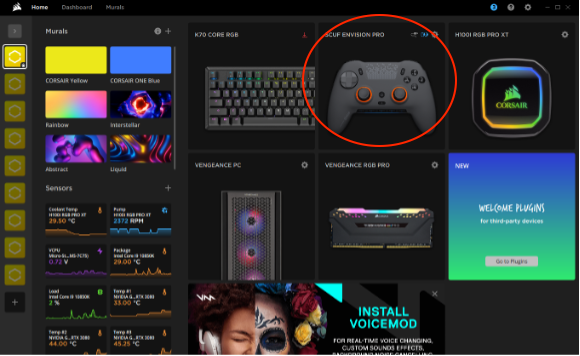

1 Connect & Open iCUE: Plug your controller into your PC via USB (ensure Envision Pro is in wired mode). Open iCUE and click the Envision image on the home screen.

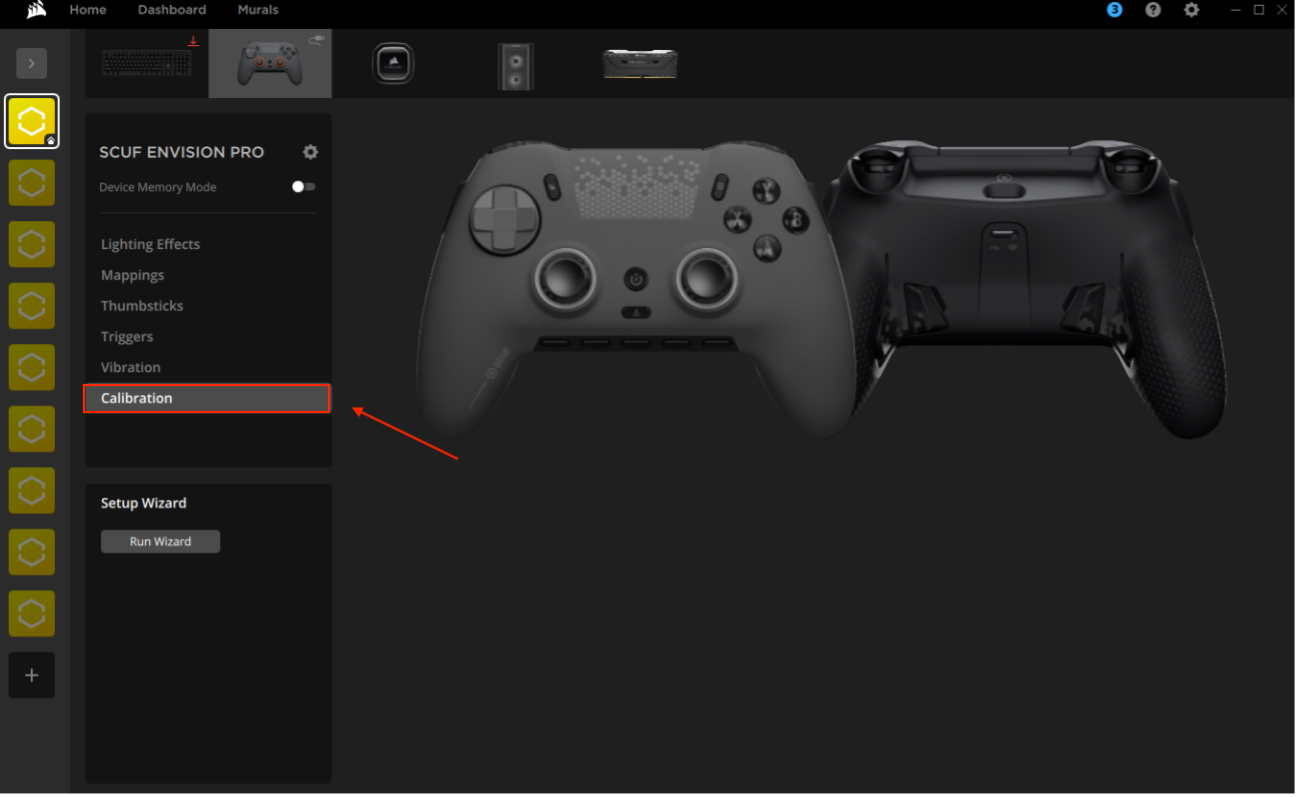

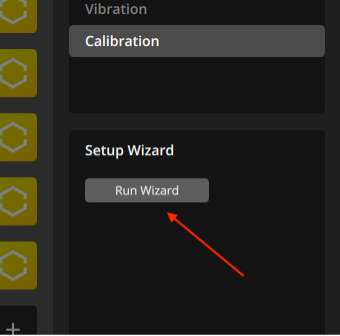

2 Launch Wizard: Click "Calibration" in the sidebar, select “Run Wizard” under Setup Wizard, and press "Start Process".
3 Calibrate Triggers: With triggers in Full Throw mode, press and release the Left Trigger (LT) three times, then repeat for the Right Trigger (RT).
4 Directional Calibration: Move the Left Stick (LS) fully in each direction (Up, Down, Left, Right), resting for 2 seconds in the center each time. Repeat for the Right Stick (RS).
5 Rotational Calibration: Rotate the LS three times clockwise and three times counter-clockwise while touching the anti-friction ring. Repeat for the RS, then click "Finish".
